Coils

Product Details

5.5 - 13.5 mm Smooth Reinforced Coil with diameters according to Egyptian standards (ES 262/2009 Gr.240 All Smooth Reinforced Coil) These are steel coils with diameters of 10mm, 12mm A, B, C, D. and Gr.300

Common Produced Quality Standards
Standard Origin Grade
ES 262 : 2000 Egypt 240
280
ES 262-2 : 2015
and / or
ISO 6935-2:2007
Egypt
/
Europe
B300B-R
B300C-R
DIN 17100 Germany ST37.2
ASTM A 615 M USA Grade 40
DSTU 3760 :2006 Ukraine A 240 C
SASO 02 :1992 KSA Normal Strength
NF A 35-016 France FeE500-2
JIS G 3112 :2010 Japan SR235
SR295
ES 262-1 : 2015
and / or
ISO 6935-1:2007
Egypt
/
Europe
B240C-P
B300B-P
B300C-P
ASTM A510
(AISI / SAE)
USA 1006
1008
1010
1012
1015
1018
1020
1025
GOST 380 :2005 Ukraine 3PS
3SP
4PS
4SP
Sizes & Dimensional tolerances
Sizes P5.5 ~ P16
Max/Min Diameter +/-0.4 mm
Out of roundness 0.6>mm MAX
General Packing in Coils
Weight Inner Diameter(ID) Outer Diameter OD Length (L)
1500 Kg 850 mm ~ 950 mm 1050 mm ~ 1200 mm 1100 mm ~ 1250 mm
2000 Kg 1500 mm ~ 1600 mm
Tying 4 tying wires of 7mm(standard)

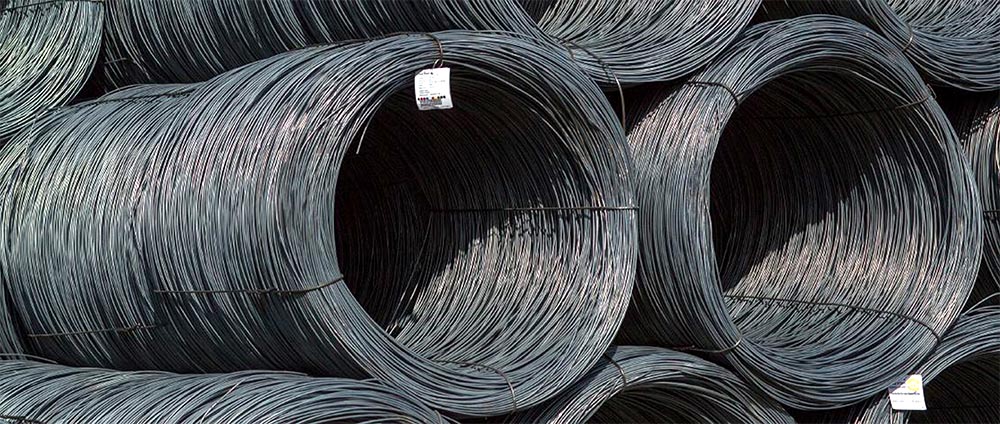

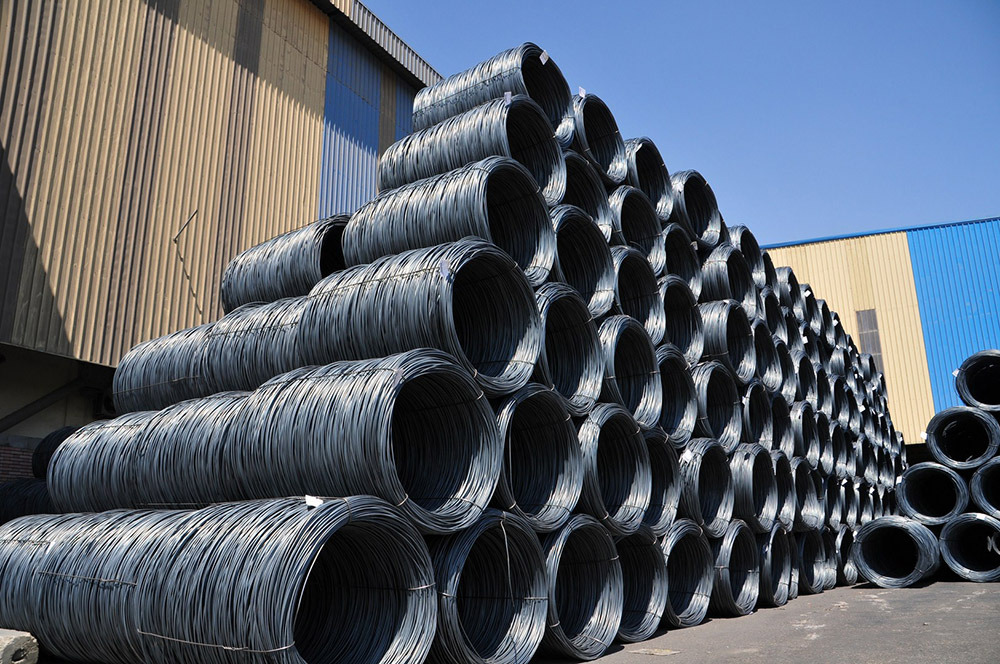

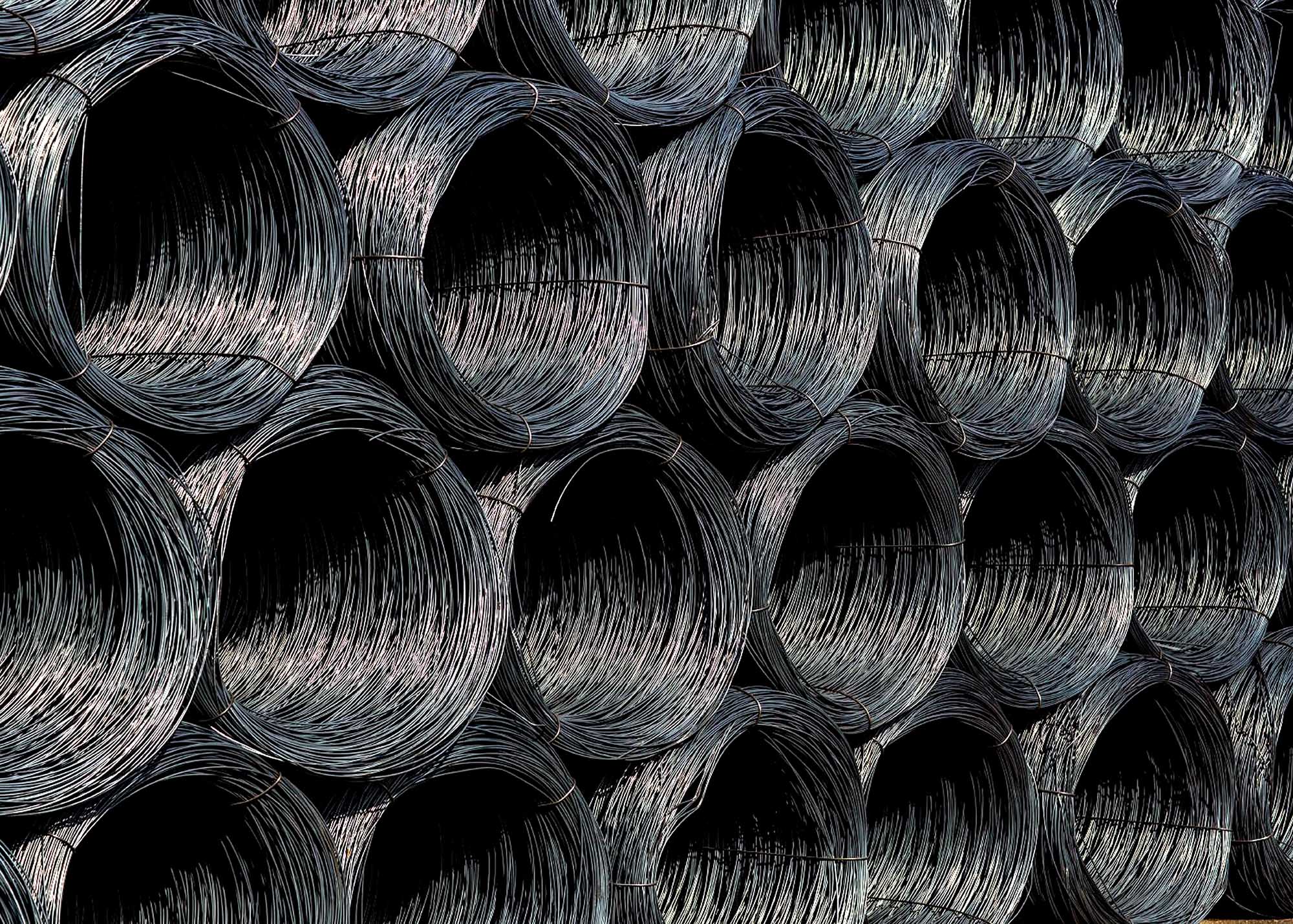

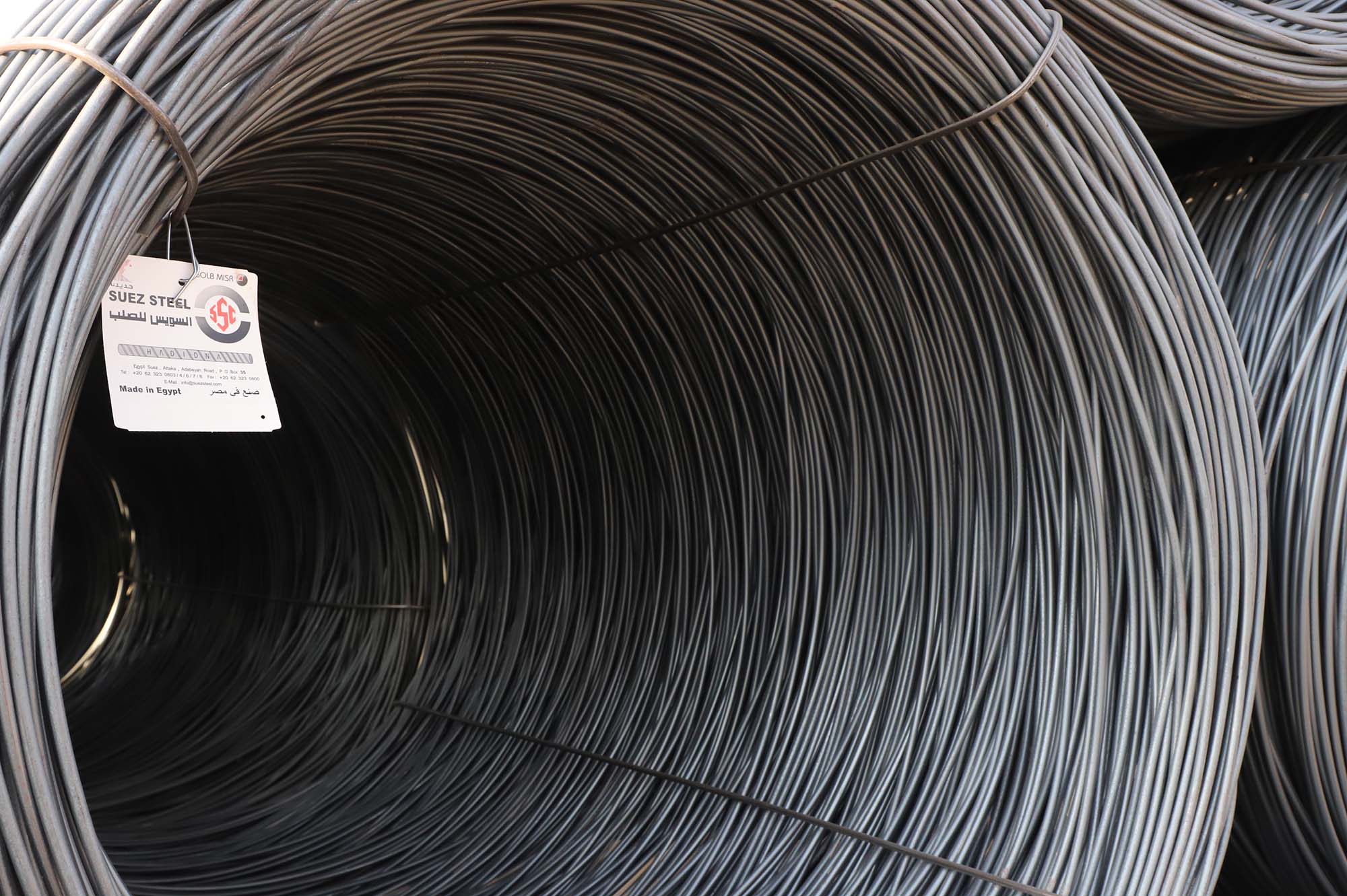

Product Images
